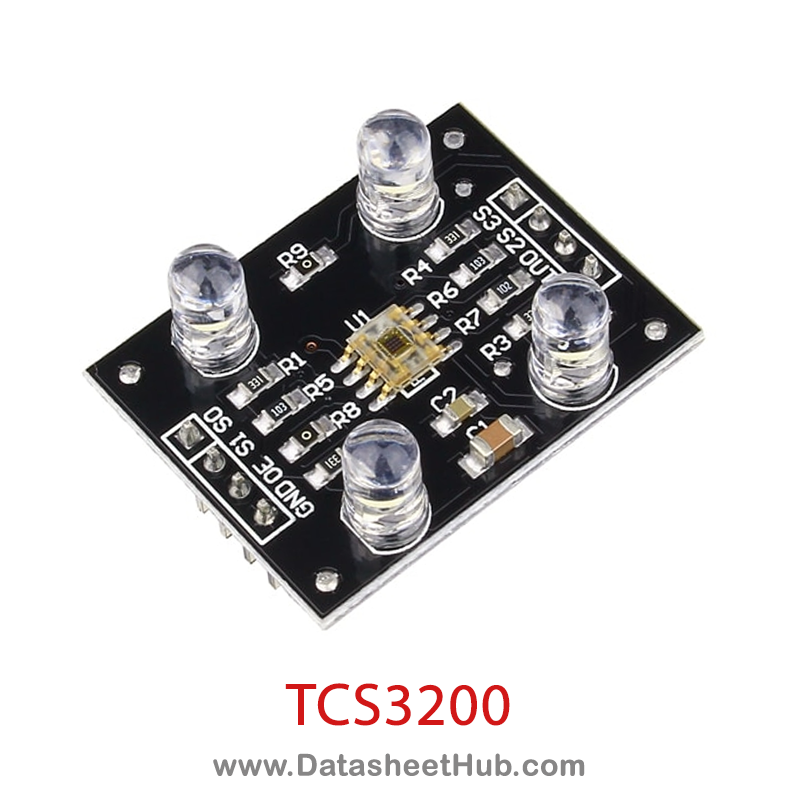

TCS3200 is a programmable Color Light to Frequency Converter Module that combines configurable silicon photodiodes and a current-to-frequency converter on a single monolithic CMOS integrated circuit. The output is a square wave (50% duty cycle) with frequency directly proportional to light intensity (irradiance). TCS3200 has an array of photodetectors, each with either a red, green, or blue filter, or no filter (clear). The filters of each color are distributed evenly throughout the array to eliminate location bias among the colors. Internal to the device is an oscillator that produces a square-wave output whose frequency is proportional to the intensity of the chosen color.
In the TCS3200 module, the light-to-frequency converter reads an 8 x 8 array of photodiodes. Sixteen photodiodes have blue filters, 16 photodiodes have green filters, 16 photodiodes have red filters, and 16 photodiodes are clear with no filters.
TCS3200 Key Features
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale OutputFrequency
- Communicates Directly With a Microcontroller unit
- Single-Supply Operation (2.7 V to 5.5 V)
- Power Down Feature
- Nonlinearity Error Typically 0.2% at 50 kHz
- Stable 200 ppm/°C Temperature Coefficient
- Low-Profile Lead (Pb) Free and RoHS Compliant Surface-Mount Package

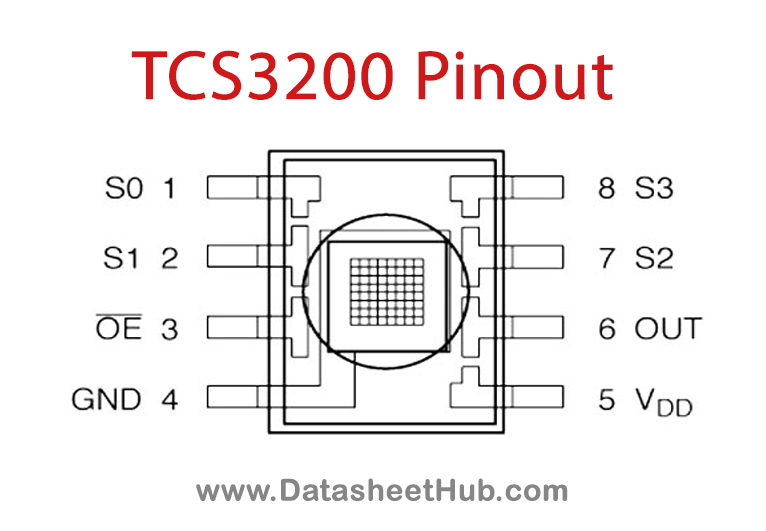

TCS3200 Pinout
| Pin Name | Pin No. | Description |
|---|---|---|
| S0 | 1 | S0 – Select line for output frequency scaling |
| S1 | 2 | S1 – Select line for output frequency scaling |
| OE’ | 3 | Enable for FO (Active low) |
| GND | 4 | Power supply ground. All voltages are referenced to the ground. |
| VDD | 5 | Chip Supply voltage |
| OUT | 6 | Output frequency (fo) |
| S2 | 7 | S2 – Select lines for photodiode type. |
| S3 | 8 |
Specifications TCS3200
- High-level output voltage: 4.5V
- Low-level output voltage: 2V
- High-level input current: 5uA
- Low-level input current: 5uA
- Temperature coefficient of responsivity: ± 200ppm/°C
- Supply voltage sensitivity: ±0.5%/ V
- Output frequency: 15.6KHz
- Peak wavelength λp = 470 nm
- Input voltage: (2.7V to 5.5V)
- Interface: Digital TTL
- No need for ADC(Can be directly connected to the digital pins of the microcontroller)
- Working temperature: -40C to 85C
- Size: 28.4×28.4mm (1.12×1.12″)
Applications TCS3200
- Color sensing module (TCS3200) technology has a wide range of applications in various industries such as textile, automation, automotive, food, printing, pharmaceutical, etc.
- TCS3200 usually finds its application in image processing projects regarding image acquisition and segmentation.
Datasheet TCS3200
You can download the datasheet for TCS3200 Programmable Color Sensor Module by clicking the link given below:
